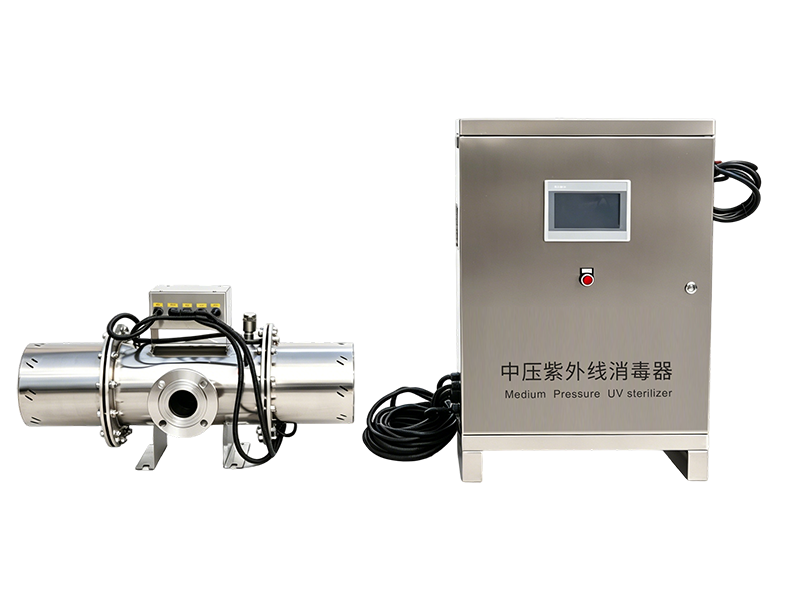

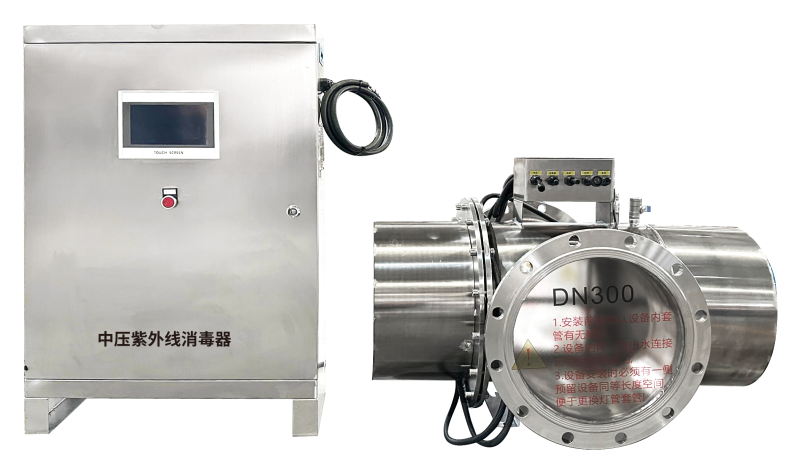

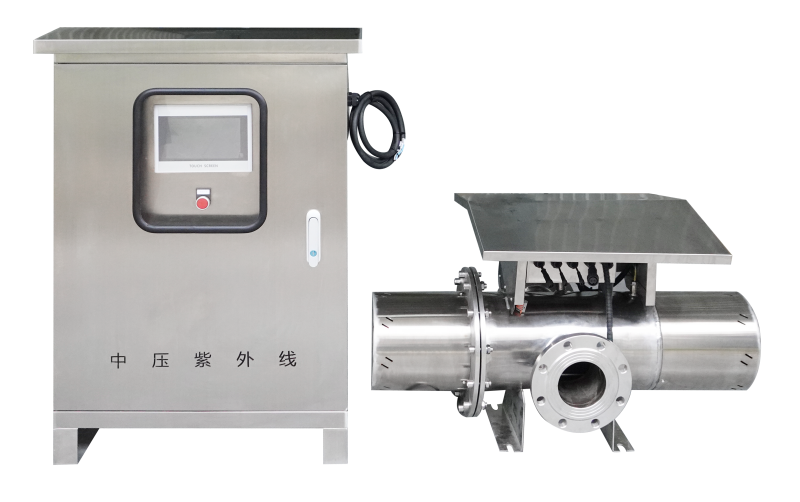

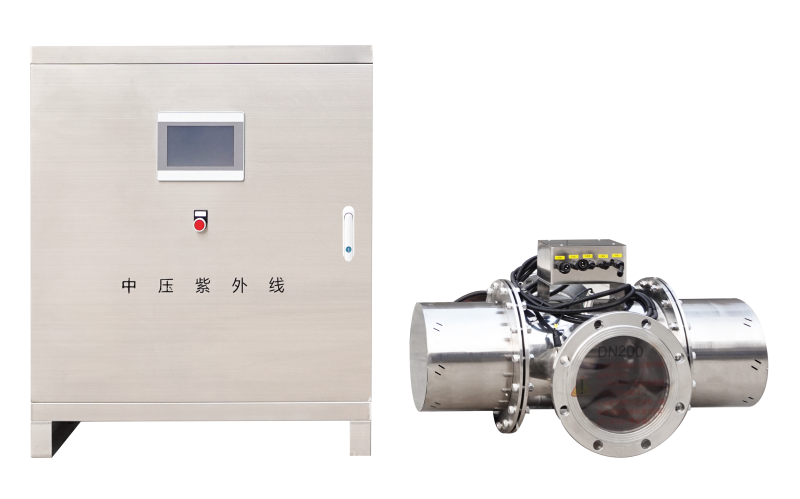

Medium pressure ultraviolet sterilizer

Product Performance

Generate ultraviolet light with a wavelength of 185-400nm

Can disinfect, dechloride, and degrade TOC in water

Supporting medium voltage UV lamp

The power selection range for sterilizers is 1.0KW-14KW

The flow range can reach 40T/h-830T/h

400-886-0956

Product Consultation

Product Features

01

Strong bactericidal properties
02

High broad-spectrum bactericidal activity
03

No harmful by-products will be produced during the disinfection process
04

Medium pressure ultraviolet radiation has the ability to degrade chlorinated compounds
05

Medium pressure ultraviolet sterilizer is designed for high flow and small volume

Equipment Selection Table

Medium pressure UV sterilizer (power selection range 1.0KW-14KW)
power	1.0KW	2.0KW	3.0KW	2*2.0KW	2*3.0KW	3*3.0KW	4*3.0KW
Standard import and export	DN65	DN150	DN200	DN200	DN250	DN300	DN350
Rated flow rate (t/h)	40	105	170	220	355	530	710
Equipment material	SUS304、SUS316L
Material of electrical box control cabinet	SUS304、SUS201、SUS316L
Maximum operating temperature	60℃
