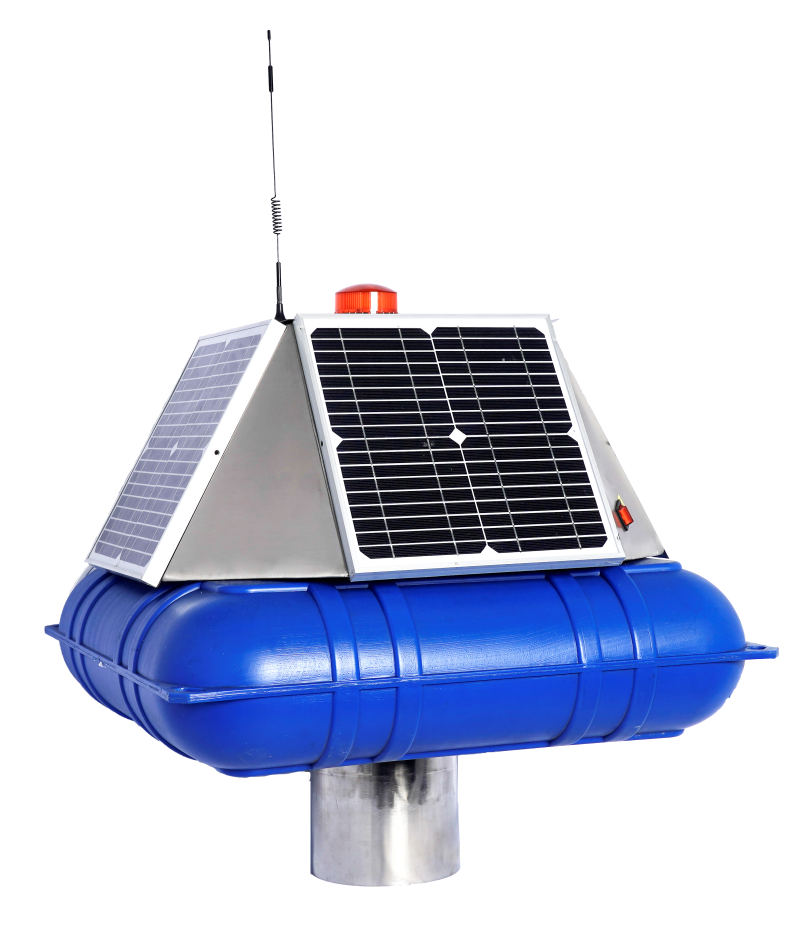

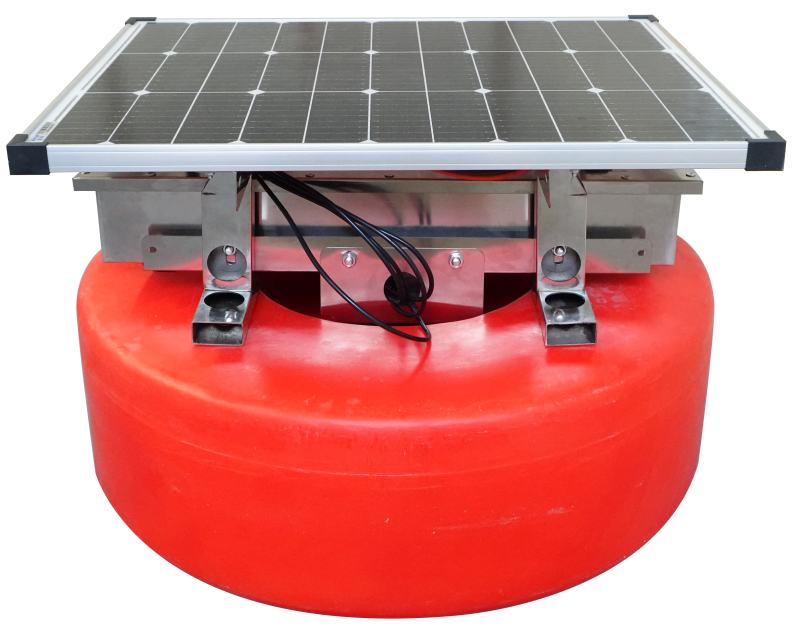

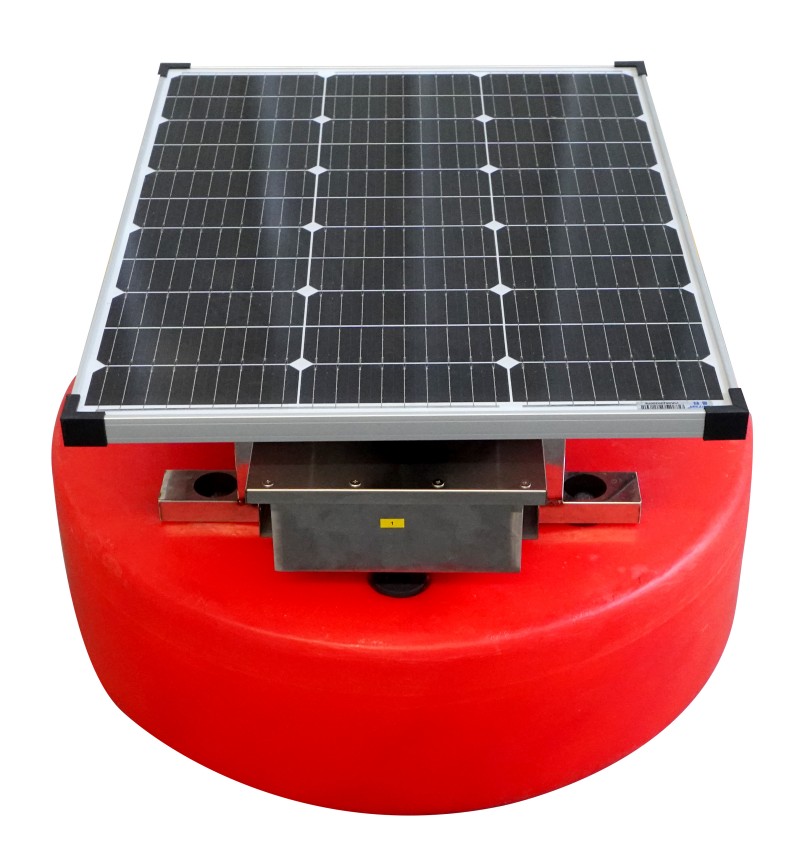

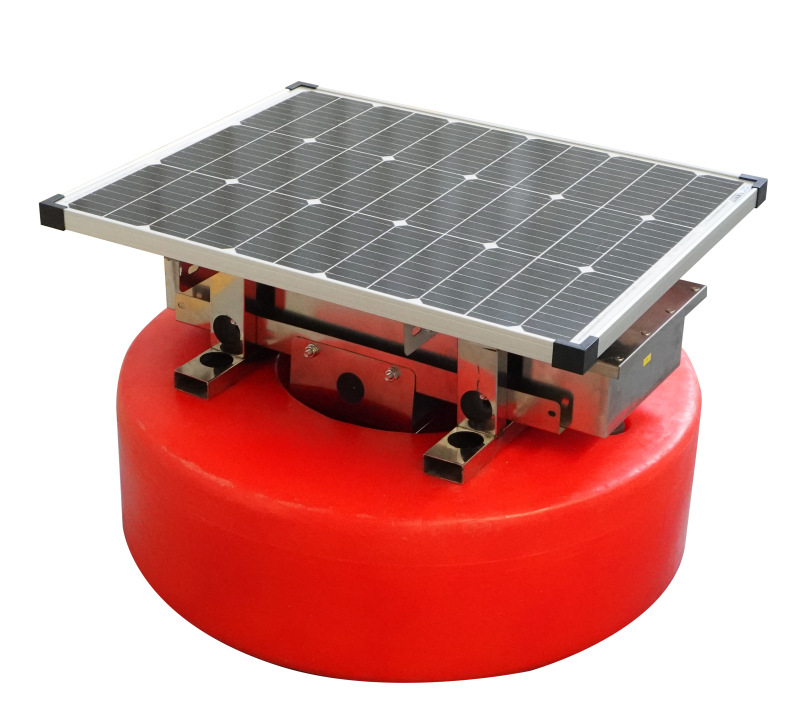

Float water quality online monitoring instrument

Product Performance

This instrument is a new generation of intelligent multi parameter water quality monitoring instrument independently developed by our company

Monitor pH, ORP, conductivity TDS、 Multiple parameters including dissolved oxygen, residual chlorine, salinity, turbidity, suspended solids, sludge concentration, etc

Parameters can be freely combined, making it easy to control water quality with one table for multiple uses

400-886-0956

Product Consultation

Product Features

01

Automatic/manual temperature compensation function
02

The instrument is equipped with a built-in watchdog function to ensure that the instrument will not crash
03

The core components are all from well-known foreign brands
04

Support RS-485 communication interface (partially compatible with MODBUS protocol)
05

Solar power supply system
06

24-hour real-time monitoring
07

Power failure protection>10 years
08

Support the Internet of Things

Equipment Selection Table

PH/ORP	0~14PH，-2000-2000mv
Temperature	0~60℃
Dissolved Oxygen	0~20mg/L
Residual Chlorine	0~20mg/L
Suspended Solids	0~10000mg/L
Sludge Concentration	0~30g/L
Turbidity	0~500NTU(range can be customized)
Conductivity/TDS	0~20000μS/cm

Communication Method	RS-485 communication (1 channel by default)
Operating Conditions	Ambient temperature 60℃, humidity ≤90%
Output Load	Load <75Ω
Operating Voltage	DC24V/DC12V
Installation Method	Water surface floating
Weight	35kg
Protection Level	IP65, waterproof, dustproof and moisture-proof
